The cast steel cylindrical body gate valves non rising stem are used for several installations. This gate valve is flanged PN 40. These gate valves are made in cast steel, with body and wedge seat rings in stainless steel. They come from standard execution by handwheel.
Design & manufacture: DIN 3352
Face to face: DIN 3202 F15
Flange ends: DIN 2501 PN40
Pressure- Temperature: DIN 2401
Inspection and test: API 598
|

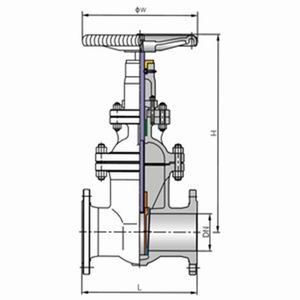

DN |
L mm. |
H mm. |
W mm. |
Weight kg. |
|
50 |
250 |
305 |
200 |
20 |
|
65 |
270 |
354 |
200 |
30 |
|
80 |
280 |
402 |
250 |
38 |
|
100 |
330 |
437 |
300 |
56 |
|
125 |
360 |
496 |
300 |
75 |
|
150 |
390 |
541 |
350 |
100 |
|
200 |
460 |
699 |
350 |
182 |
|
250 |
530 |
815 |
400 |
278 |
|
300 |
630 |
914 |
450 |
398 |
|
350 |
690 |
1189 |
500 |
500 |
|
400 |
750 |
1350 |
550 |
618 |
|
Body-bonnet |
GS-C25, CF8(M), CF3(M) |
|
Disc |
GS-C25, CF8(M), CF3(M), Monel |
|
Stem |
2Cr13, F304(L), F316(L), Monel |
|
Seat ring sealing face |
13Cr, STL, 304(L), 316(L), Monel |
|
Wedge disc sealing face |
13Cr, STL, 304(L), 316(L), Monel |
