The metal seated gate valves in cast iron are the simplest kind of valve available on the market for water applications. With flat body, non rising stem, they are widely used. The metal seated gate valves in cast iron inside screw can be installed above or under the ground level. They come from standard execution by handwheel, you can apply for cap top and T key on demand.
Design & manufacture: DIN 3352
Face to face: DIN 3202 F4
Flanges: UNI EN 1092-1 PN 10
|

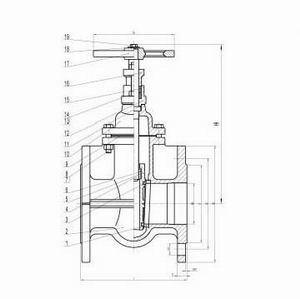

DN |
L mm |
D mm |
H mm |
|
40 |
140 |
150 |
245 |
|
50 |
150 |
165 |
255 |
|
65 |
170 |
185 |
277 |
|
80 |
180 |
200 |
303 |
|
100 |
190 |
220 |
340 |
|
125 |
200 |
250 |
387 |
|
150 |
210 |
285 |
457 |
|
200 |
230 |
340 |
538 |
|
250 |
250 |
395 |
629 |
|
300 |
270 |
445 |
730 |
|
Working Pressure |
1.0MPa |
|
Test Pressure |
Body |
1.5MPa |
|
Seat |
1.1MPa |
|
Body-bonnet |
Cast Iron |
|
Disc |
Cast Iron |
|
Sealing face |
Cast Brass |
|
Stem |
Stainless Steel |
