Product Name: JR-GT-26 Flanged Non Rising Metal Seated Gate Valve with Sealing Face Bronze

   SPECIFICATION/SPECIAL FEATURES

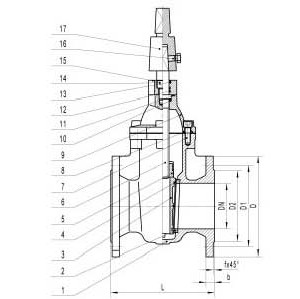

Click for technic details
The metal seated gate valves in cast iron are the simplest kind of valve available on the market for water applications. With flat body, non rising stem, they are widely used. The metal seated gate valves in cast iron inside screw can be installed above or under the ground level. They come from standard execution by handwheel, you can apply for cap top and T key on demand.

Design & manufacture: BS5163 Type B
Face to face: BS EN558-1 series 3
Flanges: UNI EN 1092-1 PN 10


DN
L mm
D mm

50
178
165

65
190
185

80
203
200

100
229
220

125
254
250

150
267
285

200
292
340

250
330
405

300
356
460

350
381
520

400
406
580

450
432
640

500
457
715

600
508
840

Working Pressure
1.6MPa
Test Pressure
Body
2.4MPa
Seat
1.76MPa

Body-bonnet
Ductile Iron
Disc
Ductile Iron
Sealing face
Cast Bronze
Stem
Stainless Steel
