Design & Manufacture: API609/MSS SP-67
Inspection & Test: API 598
End Standard: ASME B16.1/B16.5/B16.47
Face to face dimension: API 609
Hydrostatic test for shell: 24KG/CM², for seal: 15 KG/CM²
|

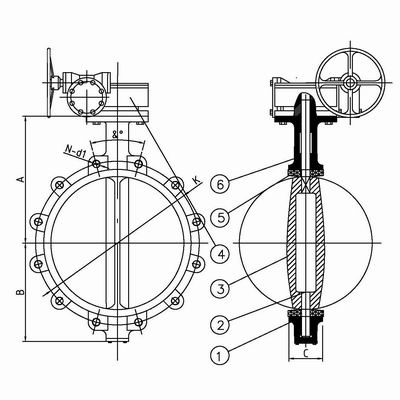

NO |
PARTS NAME |
MATERIAL |
|
1 |
BODY |
WCB |
|
2 |
STEM |
SS410 |
|
3 |
DISC |
CF8M |
|
4 |
GEAR |
CAST IRON |
|
5 |
SEAT |
EPDM |
|
6 |
BUSHING |
B148 |
