Product Name: JR-BV-07 Forged Trunnion Mounted Ball Valve 800lbs

   SPECIFICATION/SPECIAL FEATURES
Click for technic details
Design & manufacture: BS 5351
Socket weld ends: ANSI B16.11
Screw ends: ANSI B16.11
Inspection and test: API 598
Face to face: manufacture¡¯s standard
Body & Bonnet
Carbon Steel A105(N), Stainless Steel F304(L), F316(L)
Ball
F410, F304(L), F316(L)
Stem
F410, F304(L), F316(L)
Sealing Ring

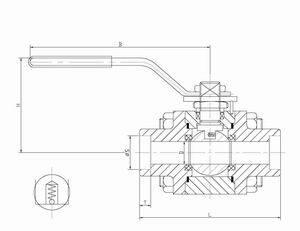

Size
L mm
H mm
B mm
Weight kg
1/4¡±
92
70
125
2.5
3/8¡±
92
70
125
2.4
1/2¡±
92
70
125
2.3
3/4¡±
111
80
215
3.4
1¡±
127
80
215
5.4
1 1/4¡±
140
105
250
6.4
1 1/2¡±
152
105
250
11.0
2¡±
152
115
290
13.0
