PRODUCT >> Valves >> Check
Product Name: JR-CK-12 Ball Check Valve

   SPECIFICATION/SPECIAL FEATURES
The ball check valves are a kind of check valves that acts automatically when the flow stops, thanks to the movement of the ball located inside the valve itself that returns to initial position stopping the flow. The ball check valves grant the full bore with the movement of the ball, without pressure drops. The mechanical work of these check valves creates optimal conditions inside the valve, the passage is never obstructed, and this kind of valve can be well used in case of flow with little powders. The ball check valves don¡¯t need any maintenance and are automatically cleaned.

Face to face: EN 558-1 series 48, DIN 3202 F6
Flanged ends: UNI EN 1092-1 PN10/PN16/PN25
Body & Bonnet
Ductile Iron
Ball
Ductile Iron/EPDM
Gasket
NBR

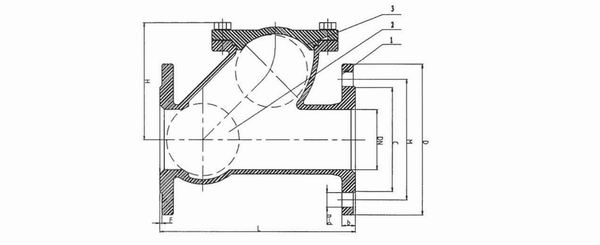

DN
L mm
H mm
D mm
Weight kg
50
200
-
165
-
65
240
-
185
-
80
260
-
200
-
100
300
-
220
-
125
350
-
250
-
150
400
-
285
-
200
500
-
340
-
250
600
-
395
-
300
700
-
445
-
350
800
-
505

400
900
-
585

450
1000
-
640

500
1100
-
715

600
1300
-
840
