Product Name: JR-CK-15 Butterfly Swing Check Valve with counterweight and cylinder

   SPECIFICATION/SPECIAL FEATURES
The butterfly check valves with oil cylinder are very reliable as they can regulate the closing time of the valve. These valves are applied in pipelines as non-return device, with flow allowed in one direction only. The oil cylinder will slow down the closure movement, to reduce any slam with noise. Epoxy coated inside and outside, the double flanged butterfly valves can be installed in drinking water plants. NBR gasket seals are on the disc and can be replaced without dismantling the valves from the pipeline.

Face to face length: EN 558-1, series 14. DIN 3202 F4
Flange: UNI EN 1092-1 PN10/PN16/PN25
Body
Cast Iron, Ductile Iron
Disc
Cast Iron, Ductile Iron
Sealing face
Brass/Stainless Steel
Shaft
Stainless Steel
Cylinder
Carbon Steel

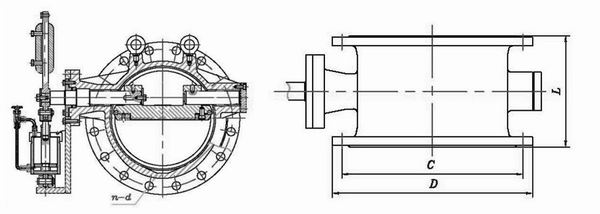

DN
L mm
D mm
C mm
100
190
220
180
125
200
250
210
150
210
285
240
200
230
340
295
250
250
405/395
355/350
300
270
460/445
410/400
350
290
520/505
470/460
400
310
580/565
525/515
450
330
640/615
585/565
500
350
715/670
650/620
600
390
840/780
770/620
700
430
910/895
840
