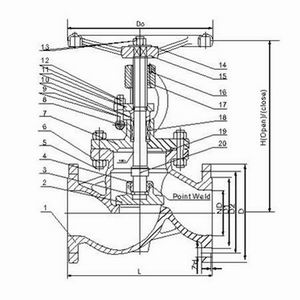

Product Name: JR-GL-04 Cast Steel Globe Valve DIN 3202 F1

   SPECIFICATION/SPECIAL FEATURES

The cast steel globe valves are manufactured according to DIN standard, for industrial applications. The cast steel globe valves have: outside screw and yoke, bolted bonnet, non rising stem. The standard material is GS-C25/13CR, and other material and trims are available upon request. Handwheel operated, with reducing gear upon request.

Design: DIN 3356
Face to face: DIN 3202-F1, PN 64 Conforms to DIN 3202 F2
Flange ends: DIN 2543, PN 16 Form C CP/N 2526
Test: API 598
Temperature-pressure: DIN 2401

DN
L mm.
H mm.
Do mm.
Weight kg.
PN 16
15
130
246
120
-
20
150
260
140
-
25
160
276
160
-
32
180
308
160
-
40
200
321
200
-
50
230
360
50
-
65
290
402
280
-
80
310
437
300
-
100
350
492
360
-
125
400
495
400
-
150
480
607
400
-
200
600
700
600
-

Nominal Pressure (MPa)
Test Pressure
Shell Test
Back Seal Test
Seal Test
Air Test
1.6
2.4
1.76
1.76
0.6
2.5
3.75
2.75
2.75
0.6
4.0
6.0
4.4
4.4
0.6
6.4
9.6
7.1
7.1
0.6

body
GS-C25+13CR
bonnet
GS-C25
stem
A182 F6a
disc
A105+13CR
gasket
Graphite+SS304
