The forged steel globe valves are on-off valves manufactured according to API, ANSI, ASME standard, for industrial applications. The forged steel gate valves are manufactured with: outside screw and yoke, bolted or welded bonnet, rising stem, integral flanged ends. The body of the valve is in A105/F6, other materials are available upon request. Hand wheel operated.
Design & manufacture: API 602, ASME B16.34
Flanged ends: ANSI B16.5
Face to face: ANSI B16.10
Pressure & temperature: ASME B16.34
Test & inspection: API 598
|

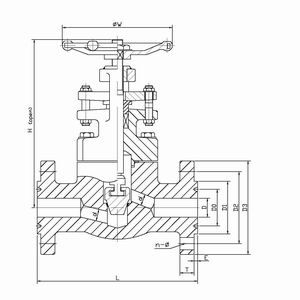

DN |
L mm |
H mm |
W mm |
Weight kg |
|
150lbs |
|
1/2¡± |
108 |
166 |
100 |
4.5 |
|
3/4¡± |
117 |
171 |
100 |
6.9 |
|
1¡± |
127 |
207 |
125 |
9.8 |
|
1 1/4¡± |
140 |
240 |
160 |
13.5 |
|
1 1/2¡± |
165 |
258 |
160 |
19.5 |
|
2¡± |
203 |
330 |
180 |
28.0 |
|
Body & bonnet |
A105(N), A182 F22, A182 F304(L), A182 F316(L) |
|
Stem |
A182 F6a, A182 F304, A182 F304(L), A182 F316(L) |
|
Disc |
A276 420, A276 304(L), A276 316(L) |
|
Gasket |
Corrugated SS+Graphite |
