Design & manufacture: ANSI B16.34
Face to face: ANSI B16.10
Flanged ends: ANSI B16.5
BW ends: ANSI B16.25
Test and inspection: API 598, API 6D
|
Body-bonnet |
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M |
|
Stem |
A182 F6, A182 F304, F316, Monel |
|
Body seat facing |
A182 F6, A182 F304, F316, Monel |
|
Wedge ring facing |
A182 F6, A182 F304, F316, Monel |
|
Gasket |
SS spring wound W/graphite, PTFE |
|

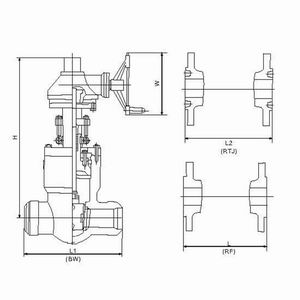

Size |
L mm |
H mm |
W mm |
Weight kg |
|
2¡± |
268 |
554 |
300 |
50 |
|
2 1/2¡± |
419 |
637 |
350 |
84 |
|
3¡± |
381 |
680 |
350 |
92 |
|
4¡± |
457 |
796 |
400 |
154 |
|
6¡± |
610 |
1084 |
560 |
341 |
|
8¡± |
737 |
1372 |
460 |
622 |
|
10¡± |
838 |
1494 |
610 |
950 |
|
12¡± |
965 |
1550 |
610 |
1295 |
|
14¡± |
1029 |
1960 |
610 |
1720 |
|
16¡± |
1130 |
2210 |
760 |
2380 | |
|
