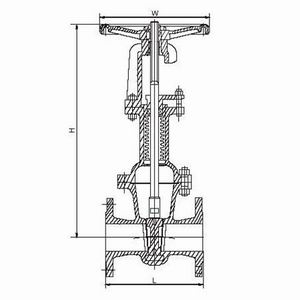

Product Name: JR-GT-04 Gate Valve with Bellow Seal

   SPECIFICATION/SPECIAL FEATURES

Design & manufacture: ANSI B16.34
Face to face: ANSI B16.10
Flanged ends: ANSI B16.5
BW ends: ANSI B16.25
Test and inspection: API 598, API 6D


Body-bonnet
Cast steel A216WCB, Alloy steel A217 WC6, WC9, Stainless steel A351 CF8, CF8M, CF3, CF3M
Stem
A182 F6, A182 F304, F316, Monel
Body seat facing
A182 F6, A182 F304, F316, Monel
Wedge ring facing
A182 F6, A182 F304, F316, Monel
Gasket
SS spring wound W/graphite, PTFE



Size
L mm
H mm
W mm
Weight kg
2¡±
268
554
300
50
2 1/2¡±
419
637
350
84
3¡±
381
680
350
92
4¡±
457
796
400
154
6¡±
610
1084
560
341
8¡±
737
1372
460
622
10¡±
838
1494
610
950
12¡±
965
1550
610
1295
14¡±
1029
1960
610
1720
16¡±
1130
2210
760
2380
