PRODUCT >> Valves >> Gate
Product Name: JR-GT-05 Slab Gate Valve

   SPECIFICATION/SPECIAL FEATURES

Design & manufacture: API 6D
Face to face: ANSI B16.10
Flanged ends: ANSI B16.5
BW ends: ANSI B16.25
Inspection and test: API 598
Pressure-temp class: ANSI B16.34

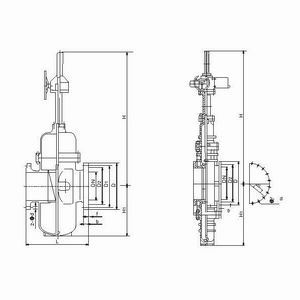

DN
L mm.
H mm.
D mm.
Weight kg.
150lbs
2"
7
23
10
-
3"
8
26 3/4
10
-
4"
9
34
10
-
6"
10 1/2
45 3/8
14
-
8"
11 1/2
52 3/8
14
-
10"
13
59 1/2
16

12"
14
68 5/8
18
-
14"
15
76
20
-
16"
16
82 7/8
24
-
18"
17
90
24
-
20"
18
98 1/4
24
-
24¡±
20
113
24
-
28¡±
24
127 1/4
24
-
30¡±
26
136 1/4
24
-
36¡±
32
157
36
-
40¡±
38
172
36
-



Body-bonnet
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M
Stem
A182 F6, A182 F304, F316
Seat
A105, A325 LF2, F304(L), F316(L)
Sealing face
ER410/316/STL
Gasket
Flexible graphite
