Product Name: JR-GT-07 Cast Steel Gate Valve F4

   SPECIFICATION/SPECIAL FEATURES

The cast steel short body gate valves outside screw and yoke are used for several installations, usually for industrial plants with dangerous liquids, or high temperature and they can carry pressure up to 16 bar. This gate valve is flanged PN 16. These gate valves are made in cast steel, with body and wedge seat rings in stainless steel. They come from standard execution by handwheel.

Design & manufacture: DIN 3352
Face to face: DIN 3202 F4
Flange ends: UNI EN 1092-1 PN 16
Inspection and test: API 598

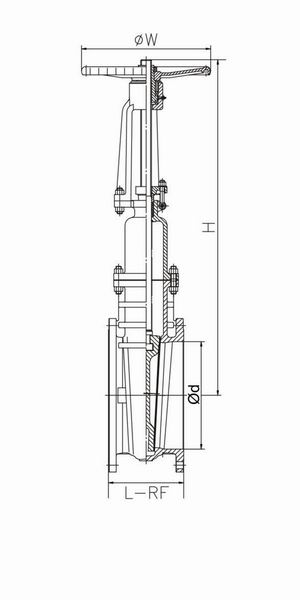

DN
L mm.
H mm.
W mm.
Weight kg.
32
130
268
180
10
40
140
295
200
13
50
150
305
200
18
65
170
345
200
23
80
180
370
250
29
100
190
445
280
38
125
200
530
280
53
150
210
565
300
68
200
230
725
360
108
250
250
885
400
160
300
270
1010
400
220
350
290
1140
450
275
400
310
1295
500
390
450
330
1380
500
487
500
350
1535
600
563
600
390
1835
700
852
700
430
2155
800
1250
800
470
3275
530
1830
900
510
3670
530
2295
1000
550
4220
530
3700
1200
630
4845
600
5050



PN(MPa)
Shell Test(MPa)
Water Seal Test(MPa)
Air Seal Test(MPa)
1.6
2.4
1.76
0.5~0.7
2.5
3.75
2.75
4.1
6.0
4.4
6.4
9.6
7.04
10.0
15.0
11.0



Body-bonnet
GS-C25, CF8(M), CF3(M)
Disc
GS-C25, CF8(M), CF3(M), Monel
Stem
2Cr13, F304(L), F316(L), Monel
Seat ring sealing face
13Cr, STL, 304(L), 316(L), Monel
Wedge disc sealing face
13Cr, STL, 304(L), 316(L), Monel
