Product Name: JR-GT-11 AWWA C509 Gate Valve Non-rising Stem

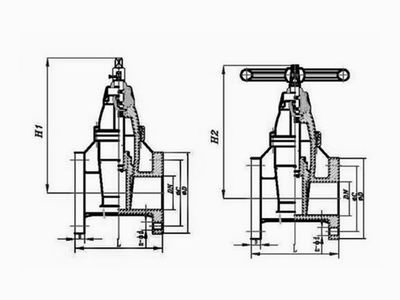

   SPECIFICATION/SPECIAL FEATURES

DN
L mm
D mm
C mm
H1 mm
50
178
152
120.5
348
65
190
178
138.5
372
80
203
191
162.5
409
100
229
229
190.5
447
125
254
254
215.0
503
150
267
279
241.5
569
200
292
343
298.5
674
250
330
406
382.0
785
300
356
483
432.0
842



Available Standard
ANSI/AWWA C509
Working Pressure
200 PSIG
Test Pressure
Body
400 PSIG
Seat
200 PSIG



Body-bonnet
Cast Iron
Disc
NBR/EPDM coated cast iron
Stem
Stainless Steel, Copper Alloy
