Product Name: JR-GT-12 Cast Iron Non-rising Stem Gate Valve

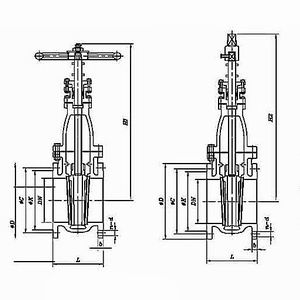

   SPECIFICATION/SPECIAL FEATURES

DN
L mm
D mm
C mm
H1 mm
50
178
165
125
315
65
190
185
145
335
80
203
200
160
385
100
229
220
180
425
125
254
250
210
485
150
267
285
240
540
200
292
340
295
885
250
330
405
355
770
300
356
460
410
900
350
381
520
470
1078
400
406
580
525
1120



Available Standard
BS 5150
Working Pressure
1.6MPa
Test Pressure
Body
2.4MPa
Seat
1.76MPa



Body-bonnet
Cast Iron
Disc
Cast Iron
Stem
Brass
Sealing face
Bronze
