PRODUCT >> Valves >> Gate

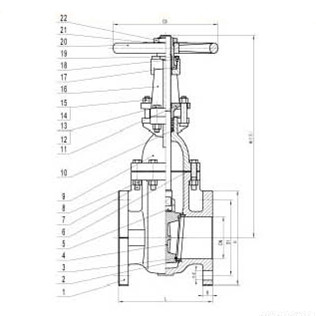

Product Name: JR-GT-13 Cast Iron Rising Stem Gate Valve

   SPECIFICATION/SPECIAL FEATURES

Design & manufacture: MSS SP-70
Face to face: ANSI B16.10
Flanged ends: ANSI B16.1

Size
L mm
D mm
D1 mm
H mm
2¡±
177.8
152
121
311
2 1/2¡±
190
178
140
347
3¡±
203.2
190
152.5
384
4¡±
228.6
228.6
190.5
490
5¡±
254
254
215.9
541
6¡±
266.7
279.4
241.3
656
8¡±
292.1
343
298.5
778
10¡±
330.2
406
362
933
12¡±
355.6
483
432
1102
14¡±
381
533.4
476.3
1259
16¡±
406.4
597
539.8
1395
18¡±
432
635
578
1560
20¡±
457
699
635
1708
24¡±
508
813
749.5
1990



Body-bonnet
Cast Iron
Disc
Cast Iron
Stem
Brass
Sealing face
Bronze


Hits£º2791  Input time£º2013/5/20 ¡¾Print this page¡¿
