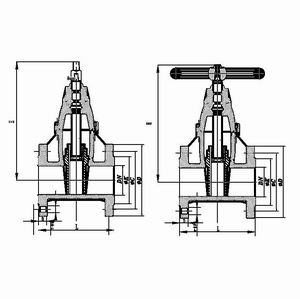

Product Name: JR-GT-14 BS 5163 Resilient Seated Gate Valve Non-rising Stem

   SPECIFICATION/SPECIAL FEATURES

DN
L mm
D mm
C mm
H1 mm
50
178
165
125
348
65
190
185
145
372
80
203
200
160
409
100
229
220
180
447
125
254
250
210
502
150
267
285
240
569
200
292
340
295
674
250
330
395
350
785
300
356
445
400
842



Available Standard
BS 5163
Working Pressure
1.0MPa
Test Pressure
Body
1.5MPa
Seat
1.1MPa



Body-bonnet
Cast Iron, Ductile Iron
Disc
NBR or EPDM coated Cast Iron, Ductile Iron
Stem
Stainless Steel or Copper Alloy



DN
L mm
D mm
C mm
H1 mm
50
178
165
125
348
65
190
185
145
372
80
203
200
160
409
100
229
220
180
447
125
254
250
210
502
150
267
285
240
569
200
292
340
295
674
250
330
395
350
785
300
356
445
400
842



Available Standard
BS 5163
Working Pressure
1.0MPa
Test Pressure
Body
1.5MPa
Seat
1.1MPa



Body-bonnet
Cast Iron, Ductile Iron
Disc
NBR or EPDM coated Cast Iron, Ductile Iron
Stem
Stainless Steel or Copper Alloy
