PRODUCT >> Valves >> Gate
Product Name: JR-GT-16 SABS 664 Double Socketted Type Gate Valve

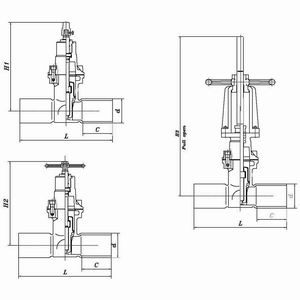

   SPECIFICATION/SPECIAL FEATURES

DN
L mm
D mm
C mm
H mm
50/63
335
63.8
90
325
65/75
335
75.8
110
359
80/90
335
90.9
120
386
100/110
355
110.0
130
420
150/160
405
161.2
150
513
200/200
450
201.4
170
617
250/250
500
251.7
180
818
300/315
550
317.0
210
998



Available Standard
SABS664
Working Pressure
1.6MPa
Test Pressure
Body
2.4MPa
Seat
1.76MPa



Body-bonnet
Ductile Iron
Disc
NBR or EPDM coated Ductile Iron
Stem
Stainless Steel or Copper Alloy
