Design & Manufacture: API 602, ASME B16.34
Test & Inspect: API 598
Marking: MSS-SP-25
Socket Weld Ends to ANSI/ASME B16.11
Screwed Ends to ANSI/AME B1.20.1
|
Body |
A105(N), A182 F22, A182 F304(L), A182 F316(L) |
|
Stem |
A182 F6a, A182 F304, A182 F304(L), A182 F316(L) |
|
Disc |
A276 420, A276 304(L), A276 316(L) |
|

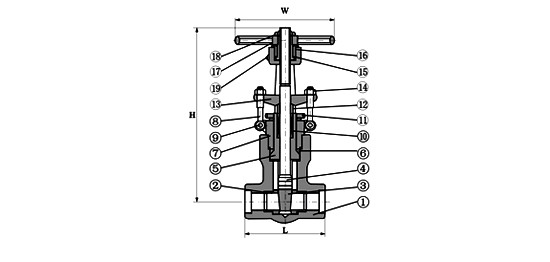

NPS |
L mm |
H mm |
W mm |
Weight kg |
|
1/2¡± |
140 |
321 |
160 |
11.5 |
|
3/4¡± |
140 |
321 |
160 |
10.8 |
|
1¡± |
140 |
321 |
180 |
10.8 |
|
1 1/4¡± |
178 |
380 |
200 |
19.6 |
|
1 1/2¡± |
178 |
414 |
250 |
21.0 |
|
2¡± |
216 |
502 |
280 |
55.4 |
|
|
