PRODUCT >> Valves >> Plug
Product Name: JR-PV-01-1 Inverted pressure balance lubricated plug valve with gear operated

   SPECIFICATION/SPECIAL FEATURES
Click for technic details

Inverted pressure balance lubricated plug valve acc. To ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of CLASS 150~900 lbs and working temperature of -29 ~180¡æ.

Structural formation: BC
Operating: Manual operated, electric actuated
Design: API 599; API 6D
Face to face: ASME B16.10
Flange end: ASME B16.5
Test & inspection: API 598; API 6D

Nominal Pressure (lbs)
Shell Test (MPa)
Sealing Test (MPa)
Suitable Temp. (¡æ)
Suitable Medium
150
3.0
2.2
¡Ü180¡æ
Water, oil & gas
300
7.5
5.5
600
15.0
11.0
900
22.5
16.5

Body & Bonnet
Cast Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M
Stem & Plug
ASTM A182 F6a, ASTM A182 F22, ASTM A182-F304, F316, F321, F304L, F316L
Gasket
Flexible graphite+SS304, PTFE
Hand wheel
ASTM A47 32510, ASTM A216 WCB

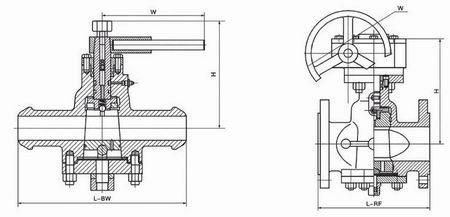

DN
L mm
H mm
W mm
Weight kg
150 lbs
15
108
180
400
10
20
117
180
400
12
25
127
185
500
14
32
140
200
500
17
40
165
214
600
19
50
178
215
600
21
65
190
250
820
29
80
203
270
820
33
100
229
300
300
48
125
254
340
300
75
150
267
365
320
98
200
292
400
320
125
250
330
450
350
171
300
356
510
380
230
350
381
590
380
370
