PRODUCT >> Valves >> Globe
Product Name: JR-GL-01 Globe Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Design: BS 1873, ASME B16.34
Face to face: ASME B16.10
Flange ends: ASME B16.5
BW ends: ASME B 16.25
Test: API 598
Manufacturing to NACE MR 01-75 on request

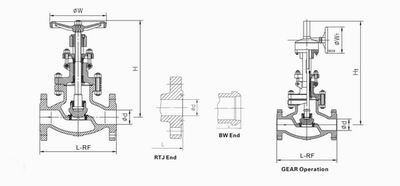

DN
L mm.
H mm.
W mm.
Weight kg.
150lbs
1/2¡±
108
185
100
4
3/4¡±
117
190
100
4.5
1¡±
127
211
100
5.5
1 1/4¡±
140
220
135
8.5
1 1/2¡±
165
240
135
12
2"
203
328
200
18
2 1/2¡±
216
360
250
26
3"
241
373
280
43
4"
292
400
300
54
5¡±
356
435
350
71
6"
406
528
350
95
8"
495
680
400
160
10"
622
775
450
299
12"
698
880
500
373
14¡±
787
-
-
-
16¡±
914
-
-
-
20¡±
978
-
-
-
24¡±
1295
-
-
-

body - bonnet
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M
stem
A182 F6, A182 F304, F316, Monel
body seat facing
A182 F6, A182 F304, F316, Monel
disc seat facing
A182 F6, A182 F304, F316, Monel
gasket
SS spring wound W/graphite, PTFE
