Pressure seal globe valve is a stronger and tighter sealing valve with less weight, bulk and requiring minimum maintenance. It's specially designed for high temperature and high pressure services. These valves are very applicable in various industries and can be encountered in demanding application at nuclear and fossil fuel power plants.
Design: ANSI B16.34
Face to face: ANSI B16.10
Flange ends: ANSI B16.5
BW ends: ANSI B16.25
|

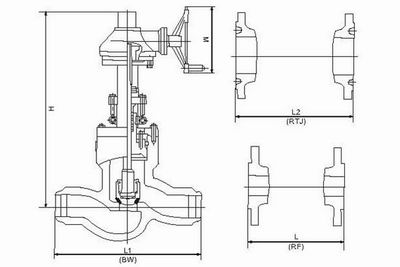

DN |
L mm |
H mm |
W mm |
Weight KG |
|
900lbs |
|
2¡± |
368 |
550 |
350 |
78 |
|
2 1/2¡± |
419 |
605 |
350 |
108 |
|
3¡± |
381 |
678 |
400 |
102 |
|
4¡± |
457 |
798 |
450 |
142 |
|
6¡± |
610 |
930 |
458 |
400 |
|
8¡± |
737 |
1260 |
610 |
960 |
|
Body & Bonnet |
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M |
|
Stem |
Stainless Steel |
|
Disc |
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M |
|
Seat Ring |
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M |
|
Gasket |
Soft Iron, SS304, SS316 |
|
Hand wheel |
Cast Steel, Malleable Iron, Ductile Iron |
|
Nominal Pressure (lbs) |
Shell Hydro. (psi) |
Seat Hydro. (psi) |
Seat Air (psi) |
|
900 |
3350 |
2442 |
80 |
|
1500 |
5626 |
4078 |
80 |
|
2500 |
9275 |
6787 |
80 |
|
|
