Product Name: JR-GL-03 Bellow Seal Globe Valve API Standard

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

A flanged and BW bellow sealed, in-line stop valve for use on steam, gas, liquid condensate and water systems. Stop valve with bellow seal acc. to ANSI fully complies with standard BS 5160.
Design and manufacture: BS 5160
Face to face: ANSI B16.10
Flanged end: ANSI B16.5
BW ends: ANSI B16.25
Inspection & test: API 598

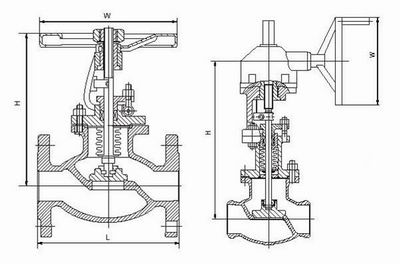

DN
L mm
H mm
W mm
Weight kg
150lbs
1/2¡±
108
241
120
4
3/4¡±
117
241
140
5
1¡±
127
241
140
6
1 1/4¡±
140
280
180
10
1 1/2¡±
165
286
200
13
2¡±
203
368
220
18
2 1/2¡±
216
387
260
30
3¡±
241
400
280
35
4¡±
292
457
300
55
5¡±
356
520
320
75
6¡±
406
609
340
104
8¡±
495
698
400
200
10¡±
622
762
450
300
12¡±
698
876
450
390
14¡±
787
990
450
610
