Product Name: JR-GL-09 Forged Steel Globe Valve 800lbs

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The forged steel globe valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The forged steel globe valves are manufactured with: outside screw and yoke, bolted or welded bonnet , rising stem, integral seat, NPT threaded ends or socked weld ends. The body of the valve is in A105/F6, other materials are available upon request. Hand wheel operated.

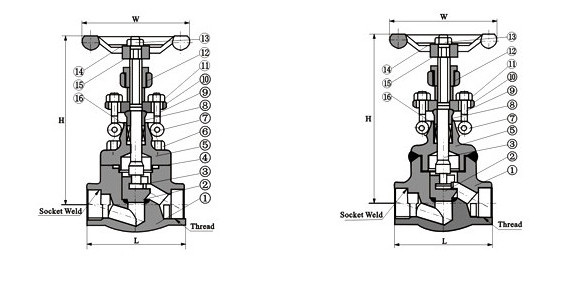

Design & construction: API 602, ASME / ANSI B16.34
End connections: SW ASTM / ANSI B16.11; NPT ASME / ANSI B1.20.1, class #800
Pressure & temperature: ASME / ANSI B16.34
Test: API 598

DN
L mm
H mm
W mm
Weight kg
Full Bore 800lbs
3/8¡±
79
166
100
1.9
1/2¡±
92
171
100
2.1
3/4¡±
111
207
125
3.5
1¡±
120
240
160
6.0
1 1/4¡±
152
258
160
7.5
1 1/2¡±
172
330
180
11.4
2¡±
200
355
200
14.6

Body & bonnet
A105(N), A182 F22, A182 F304(L), A182 F316(L)
Stem
A182 F6a, A182 F304, A182 F304(L), A182 F316(L)
Disc
A276 420, A276 304(L), A276 316(L)
Gasket
Corrugated SS+Graphite
