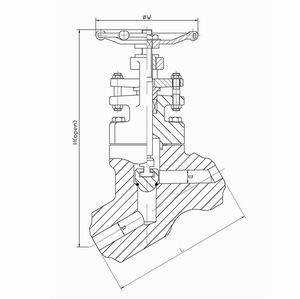

Product Name: JR-GL-11 Y Type Globe Vlave

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Y type forged globe valve is available in three bonnet designs. The first is the bolted bonnet, with male-female joint, spiral wound gasket, made in SS/graphite. Ring joint gasket is also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Design & manufacture: ASME B16.34
SW ends: ANSI B16.11
NPT ends: ANSI 1.20.1
Test & inspection: API 598

DN
L mm
H mm
W mm
Weight kg
Full Bore 800lbs
1/2¡±
98
175
100
5
3/4¡±
111
215
125
6.3
1¡±
120
254
160
7.6
1 1/4¡±
140
305
160
9.8
1 1/2¡±
140
305
180
13.8
2¡±
170
365
200
14.0

Body & bonnet
A105(N), A182 F22, A182 F304(L), A182 F316(L)
Stem
A182 F6a, A182 F304, A182 F304(L), A182 F316(L)
Disc
A276 420, A276 304(L), A276 316(L)
Gasket
Corrugated SS+Graphite
