Product Name: JR-GL-12 Y Type Globe Valve Pressure Seal Bonnet

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

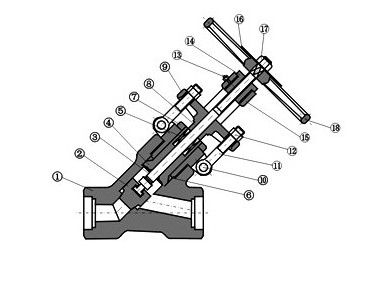

Y type forged globe valve is available in three bonnet designs. The first is the bolted bonnet, with male-female joint, spiral wound gasket, made in SS/graphite. Ring joint gasket is also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.

Design & manufacture: ASME B16.34
SW ends: ANSI B16.11
NPT ends: ANSI 1.20.1
Test & inspection: API 598

DN
L mm
H mm
W mm
Weight kg
900-1500lbs
1/2¡±
140
333
125
12.3
3/4¡±
140
333
125
11.6
1¡±
140
332
160
10.8
1 1/4¡±
178
408
160
28.0
1 1/2¡±
178
406
180
26.4
2¡±
216
524
200
43.8

Body
A105(N), A182 F22, A182 F304(L), A182 F316(L)
Stem
A182 F6a, A182 F304, A182 F304(L), A182 F316(L)
Disc
A276 420, A276 304(L), A276 316(L)
Gasket
Corrugated SS+Graphite
