Click for technic details
Design & manufacture: DIN 3356
Face to face: DIN 3202 F12
Flanged ends: DIN 2543(PN16), DIN 2544(PN25), DIN 2545(PN40)
Pressure test: DIN 3230
|

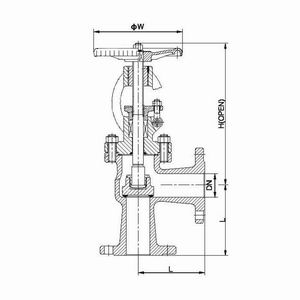

DN |
L mm |
H mm |
W mm |
Weight kg |
|
PN16 |
|
15 |
90 |
193 |
120 |
6 |
|
20 |
95 |
200 |
120 |
7.5 |
|
25 |
100 |
223 |
160 |
8 |
|
32 |
105 |
256 |
160 |
9 |
|
40 |
115 |
273 |
200 |
14 |
|
50 |
125 |
287 |
200 |
18 |
|
65 |
145 |
328 |
220 |
26 |
|
80 |
155 |
352 |
250 |
29 |
|
100 |
175 |
400 |
300 |
48 |
|
125 |
200 |
452 |
350 |
69 |
|
150 |
225 |
480 |
400 |
89 |
|
Body & Bonnet |
GS-C25+13Cr |
|
Stem |
F6a |
|
Disc |
A105+13Cr |
|
Gasket |
Graphite |
