Product Name: JR-DM-09 Reciprocal with Manual Penumatic Operated Diaphragm Valve

   SPECIFICATION/SPECIAL FEATURES

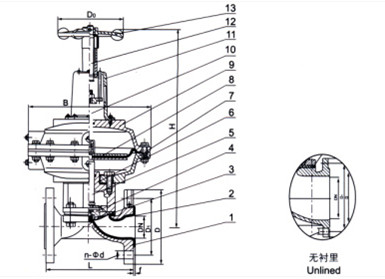

Click for technic details

It is special for controlling the noncorrosive or the strong corrosive media. Its body inner surface is unlined or lined with different fluorine plastics which can be selected to suit with different working temperatures and fluid pipelines.
Suitable temperature: 85, 100, 120, 150 according to the materials of lining and diaphragm

Design & manufacture: BS 5156
Face to face: BS 5156
Flanged ends: BS4504, DIN2532, JIS B2212, ANSI B16.1, ISO 2004
Test for lining layer: Electro spark detecting
Test: BS6755

Body & Bonnet
Cast Iron, Carbon Steel, Stainless Steel
Lining
Unlined, Fluorine Plastic
Diaphragm
Fluorine Plastic
Disc
Cast Iron, Stainless Steel
Stem
Carbon Steel, Stainless Steel

DN
L
D
D1
D0
Z-d
H
B
Weight kg
15
108
95
65
-
-
-
-
-
20
117
105
75
140
4-13.5
136
168
5
25
127
115
85
140
4-13.5
144
168
6.2
32
146
140
100
140
4-17.5
209
260
7
40
159
150
110
140
4-17.5
227
260
13
50
190
165
125
140
4-17.5
231
260
23
65
216
185
145
140
4-17.5
252
260
27
80
254
200
160
165
8-17.5
285
425
56
100
305
220
180
280
8-17.5
360
425
60
125
356
250
210
280
8-17.5
370
425
68
150
406
285
240
280
8-22
462
549
115
200
521
340
295
280
8-22
544
549
196
250
635
395
350
-
-
-
-
-
