PRODUCT >> Valves >> Diaphragm
Product Name: JR-DM-12 Weir Type Diaphragm Valve ANSI Standard

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

It is special for controlling the noncorrosive or the strong corrosive media. Its body inner surface is unlined or lined with different fluorine plastics which can be selected to suit with different working temperatures and fluid pipelines.
Suitable temperature: 85, 100, 120, 150 according to the materials of lining and diaphragm

Design & manufacture: BS 5156
Face to face: BS5156
Flanged ends: ANSI B16.1
Test for lining layer: Electro spark detecting
Test: GB/T 13927

Body & Bonnet
Cast Iron, Carbon Steel, Stainless Steel
Lining
Unlined, Fluorine Plastic
Diaphragm
Fluorine Plastic
Disc
Cast Iron, Stainless Steel
Stem
Carbon Steel, Stainless Steel

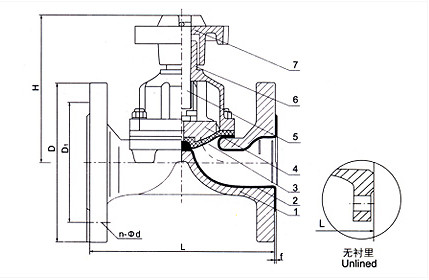

SIZE
L mm
D
D1
Z-d
Weight kg
1/2
108/125
89
60.5
4-5/8
-
3/4
117/135
98
70
4-5/8
-
1
127/145
108
79.5
4-5/8
-
1 1/4
146/160
117
89
4-5/8
-
1 1/2
159/180
127
98.5
4-5/8
-
2
190/210
152
120.5
4-3/4
-
2 1/2
216/250
178
139.5
4-3/4
-
3
254/300
190
152.5
4-3/4
-
4
305/350
229
190.5
8-3/4
-
5
356/400
254
216
8-7/8
-
6
406/460
279
241.5
8-7/8
-
8
521/570
343
298.5
8-7/8
-
10
635/680
406
362
12-1
-
12
749/790
483
432
12-1
-
14
787/900
533
476
12-1 1/8
-
16
914/1000
597
540
16-1 1/8
-
