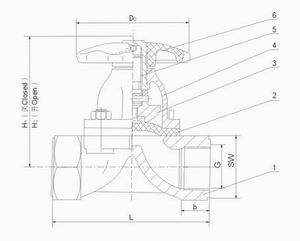

Product Name: JR-DM-18 Diaphragm Valve Inside Screw

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

It is special for controlling the noncorrosive or the strong corrosive media. Its body inner surface is unlined or lined with different fluorine plastics which can be selected to suit with different working temperatures and fluid pipelines.
Suitable temperature: 85, 100, 120, 150 according to the materials of lining and diaphragm

Design & manufacture: BS 5156
Face to face: GB/T15188.3(N8)
Flanged ends: BS4504
Test for lining layer: Electro spark detecting
Test: GB/T 13927

Body & Bonnet
Cast Iron, Carbon Steel, Stainless Steel
Lining
Unlined, Fluorine Plastic
Diaphragm
Fluorine Plastic
Disc
Cast Iron, Stainless Steel
Stem
Carbon Steel, Stainless Steel

SIZE
L mm
SW
b1
H1
Weight kg
1/4
50
20
-
60
0.6
3/8
50
24
-
-
0.7
1/2
65
38
8
84
0.8
3/4
85
40
12
93
1.1
1
110
48
18
106
1.9
1 1/4
120
58
18
137
3.3
1 1/2
140
69
18
142
4.2
2
165
85
20
167
5.8
2 1/2
203
60
20
190
9.5
3
254
105
32
206
16.2
