Click for technic details
Working Pressure: 1000PSI WOG
Temperature Range: -20~232¡æ
Suitable Medium: Water, Oil, Air and some corrosive liquid
Thread Kinds: NPT, BSPT, BSP, DIN259/2999, BSPP
|
Body & Cap |
CF8M |
|
Ball |
SS316 |
|
Stem |
SS304 |
|
Handle |
SS304 |
|

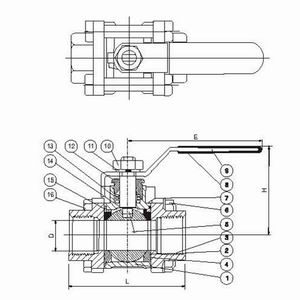

Size |
D mm |
L mm |
H mm |
E mm |
Weight kg |
|
1/4¡± |
11.6 |
68 |
100 |
100 |
- |
|
3/8¡± |
12.7 |
68 |
100 |
100 |
- |
|
1/2¡± |
15 |
72 |
130 |
130 |
- |
|
3/4¡± |
20 |
82 |
130 |
130 |
- |
|
1¡± |
25 |
90 |
165 |
165 |
- |
|
1 1/4¡± |
32 |
112 |
165 |
165 |
- |
|
1 1/2¡± |
38 |
120 |
190 |
190 |
- |
|
2¡± |
50 |
145 |
190 |
190 |
- |
|
2 1/2¡± |
65 |
185 |
250 |
250 |
- |
|
3¡± |
80 |
210 |
250 |
250 |
- |
|
4¡± |
100 |
268 |
280 |
280 |
- |
