Product Name:
JR-BV-05 Cast Iron Ball Valve DIN
SPECIFICATION/SPECIAL FEATURES
Click for technic details
Design & manufacture: DIN
Face to face: DIN 3202 F5
Working Pressure(MPa)
1.6
Test Pressure(MPa)
Body
2.4
Seat
1.75
Body
Cast Iron, Ductile Iron
Ball
Stainless Steel
Stem
Stainless Steel
Packing
PTFE

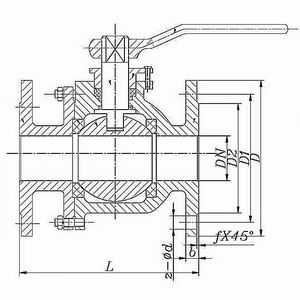

DN
L mm
D mm
Weight kg
PN 16
32
140
140
5.5
40
240
150
8.0
50
250
165
10.5
65
270
185
14.3
80
290
200
19.5
100
300
220
26.1
125
325
250
42.0
150
350
285
55.0
200
400
340
93.7
250
450
405
156.5
