Product Name: JR-BV-02 Two Pieces Trunnion Mounted Ball Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Design & manufacture: API 6D, API 608, ANSI B16.34, BS5351
Face to face: ANSI B16.10
Pressure-Temperature: ANSI B16.34
Inspection and test: API 598
Flanged ends: ANSI B16.5, API 605, MSS-SP-44
BW ends: ANSI B16.25
Fire safe & anti-static

Body & Bonnet
Cast Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M
Ball
A105, F304, CF8(M), CF3(M)
Stem
F6, F304(L), F316(L)
Seat
F6, F304(L), F316(L)
Seat ring
PTFE, POM, HF(Co-CrA)

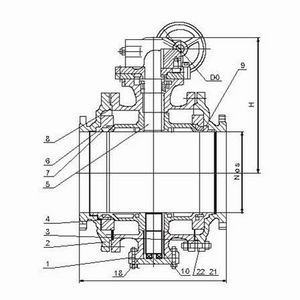

DN
L mm
H mm
D0 mm
Weight kg
150 lbs
50
178
153
400
15
65
191
165
400
19
80
203
195
600
38
100
229
213
850
65
150
394
272
1100
97
200
457
342
1500
160
250
533
495
350
240
300
610
580
350
390
350
686
625
600
510
400
762
720
600
750
450
864
790
800
895
500
914
840
800
1190
600
1067
1050
800
2100
700
1245
1150
800
3000
