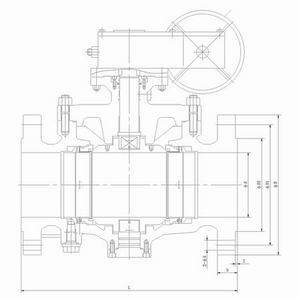

Product Name: JR-BV-01 Top Entry Trunnion Mounted Ball Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Design & manufacture: API 6D
Flanged ends: ANSI B16.5
Face to face: ANSI B16.10
Fire safe: API 6FA
Test and Inspection: API 6D
NACE MR 0175 available upon request

Test Pressure(MPa)
Shell Test
7.5
Seal Test
5.5
Air Seal Test
0.6

Body
Cast Iron A216 WCB
Ball
ASTM F316, A105
Stem
Stainless Steel
Packing
Graphite

Size
L mm
D mm
Weight kg
2¡±
292


3¡±
356


4¡±
432


6¡±
559


8¡±
660


10¡±
787


12¡±
838


14¡±
889


16¡±
991


18¡±
1092


20¡±
1194


24¡±
1397
