200X pressure reducing valve utilizes the self energy of a medium to adjust the pipeline pressure and controls the outlet pressure of the main valve via the adjustment of the pressure reducing pilot valve. The outlet pressure does not change along with the variation of the inlet one and of the water quantity at the outlet. Reliable sealing performance, easy installation, maintenance, debugging and check, long duration.
|

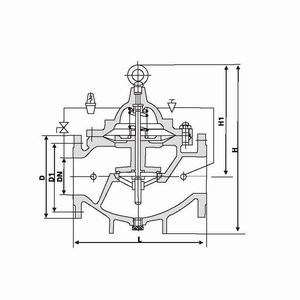

DN |
L |
D |
D1 |
H |
H1 |
Weight kg |
|
PN10 |
|
20 |
180 |
105 |
75 |
342 |
247 |
- |
|
25 |
180 |
115 |
85 |
342 |
247 |
- |
|
32 |
180 |
135 |
100 |
342 |
247 |
- |
|
40 |
203 |
145 |
110 |
365 |
278 |
- |
|
50 |
205 |
160 |
125 |
365 |
278 |
- |
|
65 |
2530 |
180 |
145 |
405 |
298 |
- |
|
80 |
245 |
195 |
160 |
430 |
313 |
- |
|
100 |
295 |
215 |
180 |
510 |
350 |
- |
|
125 |
325 |
245 |
210 |
560 |
365 |
- |
|
150 |
375 |
280 |
240 |
585 |
420 |
- |
|
200 |
410 |
335 |
295 |
675 |
450 |
- |
|
250 |
470 |
390 |
350 |
730 |
470 |
- |
|
300 |
510 |
440 |
400 |
760 |
505 |
- |
|
350 |
585 |
500 |
460 |
840 |
550 |
- |
|
400 |
635 |
565 |
515 |
910 |
605 |
- |
|
450 |
675 |
615 |
565 |
1030 |
660 |
- |
|
500 |
715 |
670 |
620 |
1135 |
710 |
- |
|
600 |
850 |
780 |
725 |
1270 |
785 |
- |
