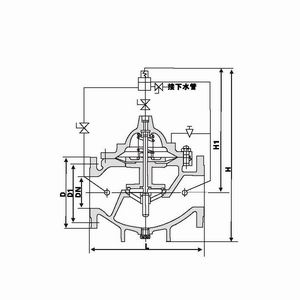

500X pressure discharge/sustain valve uses a pipeline system to prevent it from surpassing pressure of keep the pressure of it, to reduce the water hammer¡¯s shock after the pump is closed and also used as a water hammer remover for a large water supply system. On the inlet of the valve¡¯s control system a self cleaning filter screen is placed, which, by means of the bigger specific gravity of the fluid, stops the suspension grains of a bigger specific gravity and diameter going into the system to ensure the main valve¡¯s water supply pressure at the upstream at a set value to get the system smoothly circulated without any resistance. This valve features sensitive open-close, safety, reliability, stable motion and long duration.
|
DN |
L |
D |
D1 |
H |
H1 |
Weight kg |
|
PN10 |
|
20 |
180 |
105 |
75 |
550 |
460 |
- |
|
25 |
180 |
115 |
85 |
550 |
460 |
- |
|
32 |
180 |
135 |
100 |
550 |
460 |
- |
|
40 |
203 |
145 |
110 |
610 |
516 |
- |
|
50 |
205 |
160 |
125 |
610 |
516 |
- |
|
65 |
2530 |
180 |
145 |
625 |
520 |
- |
|
80 |
245 |
195 |
160 |
645 |
538 |
- |
|
100 |
295 |
215 |
180 |
750 |
596 |
- |
|
125 |
325 |
245 |
210 |
808 |
655 |
- |
|
150 |
375 |
280 |
240 |
865 |
710 |
- |
|
200 |
410 |
335 |
295 |
1135 |
805 |
- |
|
250 |
470 |
390 |
350 |
1185 |
855 |
- |
|
300 |
510 |
440 |
400 |
1325 |
955 |
- |
|
350 |
585 |
500 |
460 |
1385 |
990 |
- |
|
400 |
635 |
565 |
515 |
1445 |
1030 |
- |
|
450 |
675 |
615 |
565 |
1490 |
1100 |
- |
|
500 |
715 |
670 |
620 |
1550 |
1160 |
- |
