600X hydraulic electric control valve taking a solenoid valve as the pilot valve is used in a pipeline system for automatic control and to remotely control open-close of the system upon an electric signal, accurate and quick response in the execution of remote operation and control, adjustable valve closed without any pressure fluctuation. The solenoid valve can use either AC220V or DC24V power and is available with normal open or close type. This valve features a small volume, light weight, easy repair and use, safety and reliability, long duration and can replace both gate and butterfly valves for use in a large electric operation system.
|

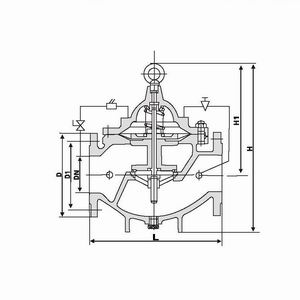

DN |
L |
D |
D1 |
H |
H1 |
Weight kg |
|
PN10 |
|
20 |
180 |
105 |
75 |
342 |
205 |
- |
|
25 |
180 |
115 |
85 |
342 |
205 |
- |
|
32 |
180 |
135 |
100 |
342 |
205 |
- |
|
40 |
203 |
145 |
110 |
390 |
278 |
- |
|
50 |
205 |
160 |
125 |
395 |
280 |
- |
|
65 |
2530 |
180 |
145 |
405 |
298 |
- |
|
80 |
245 |
195 |
160 |
430 |
315 |
- |
|
100 |
295 |
215 |
180 |
510 |
350 |
- |
|
125 |
325 |
245 |
210 |
560 |
365 |
- |
|
150 |
375 |
280 |
240 |
580 |
420 |
- |
|
200 |
410 |
335 |
295 |
675 |
450 |
- |
|
250 |
470 |
390 |
350 |
730 |
470 |
- |
|
300 |
510 |
440 |
400 |
760 |
490 |
- |
|
350 |
585 |
500 |
460 |
840 |
525 |
- |
|
400 |
635 |
565 |
515 |
910 |
570 |
- |
|
450 |
675 |
615 |
565 |
1070 |
610 |
- |
|
500 |
715 |
670 |
620 |
1135 |
665 |
- |
|
600 |
850 |
780 |
725 |
1270 |
725 |
|
