800X differential by-pass balancing valve is used between water supply/back of an air conditioning system in order to balance the pressure differential and able to raise the system¡¯s utility, keep the pressure differential at an accurately constant valve and to lower this system¡¯s noise and the damage to the equipment due to an extra-big pressure differential to the utmost extent. It is superior to the other balancing valves, needs no other execution machinery, gets the system balanced completely depending on the pressure differential of the medium¡¯s own and saves energy and the installation space.
|

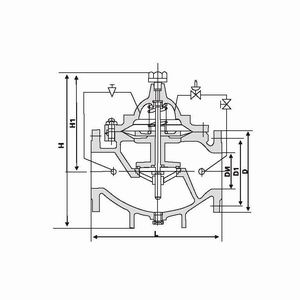

DN |
L |
D |
D1 |
H |
H1 |
Weight kg |
|
PN10 |
|
20 |
180 |
105 |
75 |
550 |
125 |
- |
|
25 |
180 |
115 |
85 |
560 |
130 |
- |
|
32 |
180 |
135 |
100 |
575 |
135 |
- |
|
40 |
203 |
145 |
110 |
590 |
145 |
- |
|
50 |
205 |
160 |
125 |
610 |
160 |
- |
|
65 |
2530 |
180 |
145 |
625 |
180 |
- |
|
80 |
245 |
195 |
160 |
640 |
200 |
- |
|
100 |
295 |
215 |
180 |
750 |
270 |
- |
|
125 |
325 |
245 |
210 |
808 |
310 |
- |
|
150 |
375 |
280 |
240 |
865 |
320 |
- |
|
200 |
410 |
335 |
295 |
1135 |
370 |
- |
|
250 |
470 |
390 |
350 |
1185 |
430 |
- |
|
300 |
510 |
440 |
400 |
1325 |
480 |
- |
|
350 |
585 |
500 |
460 |
1385 |
525 |
- |
|
400 |
635 |
565 |
515 |
1445 |
580 |
- |
|
450 |
675 |
615 |
565 |
1545 |
635 |
- |
|
500 |
715 |
670 |
620 |
1720 |
705 |
- |
