PRODUCT >> Valves >> Control
Product Name: JR-CV-14 F745X Remote Control Floating Valve Piston Type

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

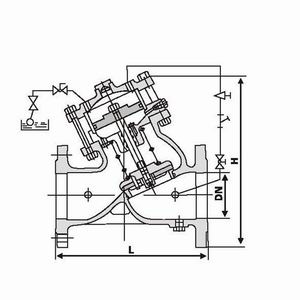

F745X remote control floating valve is mounted in the water inter pipeline of a water pool or tower. The valve will automatically close when the level of the pool reaches the preset one and open to supplement water when the level lowers.

Body & Bonnet
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Brass
Piston
Ductile Iron
Stem
Stainless Steel, Stainless Iron
Disc
Ductile Iron, Carbon Steel, Stainless Steel, Brass

DN
L
D
D1
n-d
H
Weight kg
PN10
50
205
165
125
4-18
293
-
65
220
185
145
4-18
328
-
80
245
200
160
8-18
364
-
100
295
220
180
8-18
418
-
125
330
250
210
8-18
481
-
150
360
285
240
8-22
543
-
200
405
340
295
8-22
673
-
250
465
395
350
12-22
792
-
300
500
445
400
12-22
927
-
350
575
505
460
16-22
957
-
400
635
565
515
16-26
1188
-
450
680
615
565
20-26
1218
-
500
720
670
620
20-26
1256
-
600
825
780
725
20-30
1600
-
700
970
895
840
24-30
1750
-
800
1120
1015
950
24-33
1900
-
900
1220
1115
1050
28-33
2100
-
1000
1320
1230
1160
28-36
2400
-
1200
1620
1455
1380
32-39
2860
-
1400
2020
1675
1530
36-42
3200
-
