Product Name: JR-FL-02 Socket Welding Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: carbon steel: A105


Size

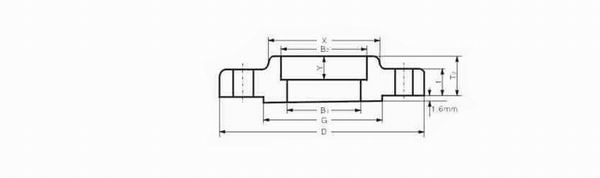

D
G
X
t
B 1
B2
T 2
Y
Weight
150 lbs
1/2¡±
89
35.1
30.2
11.2
15.7
22.4
15.7
9.7
0.47
3/4¡±
99
42.9
38.1
12.7
20.8
27.2
15.7
11.2
0.76
1¡±
108
50.8
49.3
14.2
26.7
34.5
17.5
12.7
0.87
1 1/2¡±
117
63.5
58.7
15.7
35.1
43.2
20.6
14.2
1.43
1 1/4¡±
127
73.2
65.0
17.5
40.9
49.5
22.4
15.7
1.45
2¡±
152
91.9
77.7
19.1
52.6
62.0
25.4
17.5
2.33
2 1/2¡±
178
104.6
90.4
22.4
62.7
74.7
28.4
19.1
3.55
3¡±
191
127.0
108.0
23.9
78.0
90.7
30.2
50.6
4.15
3 1/2¡±
216
139.7
122.2
23.9
90.2
103.4
31.8
22.4
5.00
4¡±
229
157.2
134.9
23.9
102.4
116.1
33.3
23.9
5.99
5¡±
254
185.7
163.6
23.9
128.3
143.8
36.6
23.9
6.96
6¡±
279
215.9
192.0
25.4
154.3
170.7
39.6
26.9
8.41
8¡±
343
269.7
246.1
28.4
202.7
221.5
44.5
31.8
13.93
10¡±
406
323.9
304.8
30.2
254.5
276.4
49.3
33.3
19.50
12¡±
783
381.0
365.3
31.8
304.8
327.2
55.6
39.6
29.03
14¡±
533
412.8
400.1
35.1
336.6
359.2
57.2
41.4
38.56
16¡±
597
469.9
457.2
36.6
387.1
410.5
63.5
44.5
47.37
18¡±
635
533.4
505.0
39.6
438.2
461.8
68.3
49.3
58.72
20¡±
699
584.2
558.8
42.9
489.0
513.1
73.2
54.1
77.81
24¡±
813
692.2
663.4
47.8
590.6
616.0
82.6
63.5
100.75
