Product Name: JR-FL-03 Slip On Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: carbon steel: A105

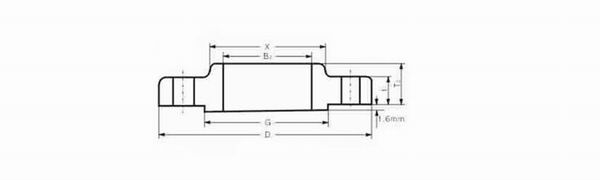

Size
D
G
X
t
B 2
T 2
Weight
150 lbs
1/2¡±
89
35.1
30.2
11.2
22.4
15.7
0.47
3/4¡±
99
42.9
38.1
12.7
27.2
15.7
0.75
1¡±
108
50.8
49.3
14.2
34.5
17.5
0.86
1 1/2¡±
117
63.5
58.7
15.7
43.2
20.6
1.40
1 1/4¡±
127
73.2
65.0
17.5
49.5
22.4
1.41
2¡±
152
91.9
77.7
19.1
62.0
25.4
2.26
2 1/2¡±
178
104.6
90.4
22.4
74.7
28.4
3.43
3¡±
191
127.0
108.0
23.9
90.7
30.2
4.00
3 1/2¡±
216
139.7
122.2
23.9
103.4
31.8
5.00
4¡±
229
157.2
134.9
23.9
116.1
33.3
5.75
5¡±
254
185.7
163.6
23.9
143.8
36.6
6.51
6¡±
279
215.9
192.0
25.4
170.7
39.6
7.81
8¡±
343
269.7
246.1
28.4
221.5
44.5
13.00
10¡±
406
323.9
304.8
30.2
276.4
49.3
17.10
12¡±
783
381.0
365.3
31.8
327.2
55.6
27.68
14¡±
533
412.8
400.1
35.1
359.2
57.2
35.20
16¡±
597
469.9
457.2
36.6
410.5
63.5
45.00
18¡±
635
533.4
505.0
39.6
461.8
68.3
54.00
20¡±
699
584.2
558.8
42.9
513.1
73.2
73.00
24¡±
813
692.2
663.4
47.8
616.0
82.6
96.00
