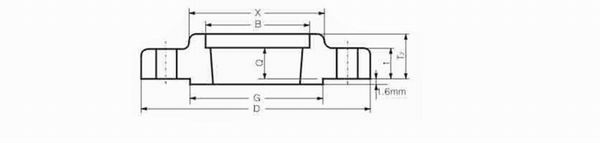

Product Name: JR-FL-04 Thread Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: carbon steel: A105


Size
D
G
X
t
B 1
T 2
Q
Weight
150 lbs
1/2¡±
89
35.1
30.2
11.2
15.7
15.7
15.7
-
3/4¡±
99
42.9
38.1
12.7
20.8
15.7
15.7
-
1¡±
108
50.8
49.3
14.2
26.7
17.5
17.5
-
1 1/2¡±
117
63.5
58.7
15.7
35.1
20.6
20.6
-
1 1/4¡±
127
73.2
65.0
17.5
40.9
22.4
22.4

2¡±
152
91.9
77.7
19.1
52.6
25.4
25.4
-
2 1/2¡±
178
104.6
90.4
22.4
62.7
28.4
28.4
-
3¡±
191
127.0
108.0
23.9
78.0
30.2
30.2
-
3 1/2¡±
216
139.7
122.2
23.9
90.2
31.8
31.8

4¡±
229
157.2
134.9
23.9
102.4
33.3
33.3
-
5¡±
254
185.7
163.6
23.9
128.3
36.6
36.6
-
6¡±
279
215.9
192.0
25.4
154.3
39.6
39.6
-
8¡±
343
269.7
246.1
28.4
202.7
44.5
44.5

10¡±
406
323.9
304.8
30.2
254.5
49.3
49.3
-
12¡±
783
381.0
365.3
31.8
304.8
55.6
55.6
-
14¡±
533
412.8
400.1
35.1
336.6
57.2
57.2
-
16¡±
597
469.9
457.2
36.6
387.1
63.5
63.5
-
18¡±
635
533.4
505.0
39.6
438.2
68.3
68.3

20¡±
699
584.2
558.8
42.9
489.0
73.2
73.2
-
24¡±
813
692.2
663.4
47.8
590.6
82.6
82.6
-
