Product Name: JR-FL-06 Blind Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: carbon steel: A105

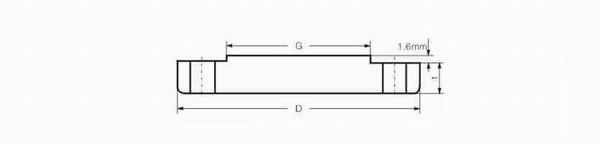

Size
D
G
t
Weight
150 lbs
1/2¡±
89
35.1
11.2
0.47
3/4¡±
99
42.9
12.7
0.63
1¡±
108
50.8
14.2
0.95
1 1/2¡±
117
63.5
15.7
1.40
1 1/4¡±
127
73.2
17.5
1.62
2¡±
152
91.9
19.1
2.64
2 1/2¡±
178
104.6
22.4
4.06
3¡±
191
127.0
23.9
5.00
3 1/2¡±
216
139.7
23.9
5.90
4¡±
229
157.2
23.9
7.50
5¡±
254
185.7
23.9
9.00
6¡±
279
215.9
25.4
12.00
8¡±
343
269.7
28.4
20.00
10¡±
406
323.9
30.2
30.00
12¡±
783
381.0
31.8
44.00
14¡±
533
412.8
35.1
64.00
16¡±
597
469.9
36.6
78.00
18¡±
635
533.4
39.6
95.00
20¡±
699
584.2
42.9
125.00
24¡±
813
692.2
47.8
190.00


Hits£º3390  Input time£º2012/6/7 ¡¾Print this page¡¿
