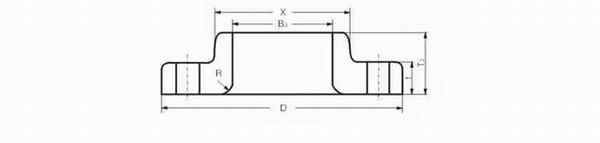

Product Name: JR-FL-11 Lap Joint Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: Stainless Steel


Size
D
X
t
B 3
T 3
R
Weight
150 lbs
1/2¡±
89
30.2
11.2
22.9
15.7
3.0
0.51
3/4¡±
99
38.1
12.7
28.2
15.7
3.0
0.70
1¡±
108
49.3
14.2
35.1
17.5
3.0
0.93
1 1/2¡±
117
58.7
15.7
43.7
20.6
4.8
1.40
1 1/4¡±
127
65.0
17.5
50.0
22.4
6.4
1.51
2¡±
152
77.7
19.1
62.5
25.4
7.9
2.38
2 1/2¡±
178
90.4
22.4
75.4
28.4
7.9
3.60
3¡±
191
108.0
23.9
91.4
30.2
9.7
4.04
3 1/2¡±
216
122.2
23.9
104.1
31.8
9.7
4.99
4¡±
229
134.9
23.9
116.1
33.3
11.2
5.96
5¡±
254
163.6
23.9
143.8
36.6
11.2
6.44
6¡±
279
192.0
25.4
170.7
39.6
12.7
7.70
8¡±
343
246.1
28.4
221.5
44.5
12.7
12.66
10¡±
406
304.8
30.2
276.4
49.5
12.7
17.00
12¡±
783
365.3
31.8
327.2
55.6
12.7
28.30
14¡±
533
400.1
35.1
359.2
79.2
12.7
41.50
16¡±
597
457.2
36.6
410.5
87.4
12.7
52.98
18¡±
635
505.0
39.6
461.8
96.8
12.7
68.00
20¡±
699
558.8
42.9
513.1
103.1
12.7
85.00
24¡±
813
663.4
47.8
616.0
111.3
12.7
120.00
