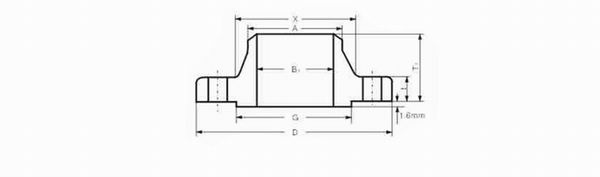

Product Name: JR-FL-07 Stainless Steel Welding Neck Flange

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Pressure: 150lbs, 300lbs and 600lbs
Standard: ANSI B 16.5
Material: Stainless Steel


Size
D
G
X
t
B 1
T 1
A
Weight
150 lbs
1/2¡±
89
35.1
30.2
11.2
15.7
47.8
21.3
0.52
3/4¡±
99
42.9
38.1
12.7
20.8
52.3
26.7
0.92
1¡±
108
50.8
49.3
14.2
26.7
55.6
33.5
1.10
1 1/2¡±
117
63.5
58.7
15.7
35.1
57.2
42.2
1.40
1 1/4¡±
127
73.2
65.0
17.5
40.9
62.0
48.3
1.81
2¡±
152
91.9
77.7
19.1
52.6
63.5
60.5
2.80
2 1/2¡±
178
104.6
90.4
22.4
62.7
69.9
73.2
4.28
3¡±
191
127.0
108.0
23.9
78.0
69.9
88.9
5.18
3 1/2¡±
216
139.7
122.2
23.9
90.2
71.4
101.6
5.50
4¡±
229
157.2
134.9
23.9
102.4
76.2
114.3
7.32
5¡±
254
185.7
163.6
23.9
128.3
88.9
141.2
8.91
6¡±
279
215.9
192.0
25.4
154.3
88.9
168.4
11.26
8¡±
343
269.7
246.1
28.4
202.7
101.6
219.2
18.00
10¡±
406
323.9
304.8
30.2
254.5
101.6
273.1
25.00
12¡±
783
381.0
365.3
31.8
304.8
114.3
323.9
39.98
14¡±
533
412.8
400.1
35.1
336.6
127.0
355.6
21.71
16¡±
597
469.9
457.2
36.6
387.1
127.0
406.4
64.41
18¡±
635
533.4
505.0
39.6
438.2
139.7
457.2
74.84
20¡±
699
584.2
558.8
42.9
489.0
144.5
508.0
89.36
24¡±
813
692.2
663.4
47.8
590.6
152.4
609.6
119.66
