Product Name: JR-BT-15 F401 Double Flange Butterfly Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Short body flanged butterfly valves are the new ¡°state of the art¡± butterfly valves available on the market, with a very compact design and various materials of constructions, they can be applied in several plants. Compatible with BS, DIN and ANSI flanges, the short body flanged butterfly valves have the rubber liner vulcanized on the body of the valve, allowing strong and reliable tightness, as well as the O ring cast on the body, that prevents any need of gaskets. Short body flanged butterfly valves are manufactured as centric type disc, they can stand both directions of fluid and are maintenance-free. The body, not in contact with the fluid, can be lined with EPDM, BUNA, PTFE, Neoprene or Viton: in this way we can apply these butterfly valves to any plant and for every medium, simply mounting the suitable disc in ductile iron, stainless steel 304 or 316, Al-Bronze C95400. Such valves can be installed in any position. Short body flanged butterfly valves come with lever (standard execution); reducing gear with handwheel, pneumatic operator with single or double effect, and electric actuator on request.

Design & manufacture: MSS SP-67, BS 5155, API 609
Face to face: DIN 3202 F16, EN 558-1 series 13
Flanges: UNI EN 1092-1 PN10/16

Body
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Disc
Ductile Iron, Stainless Steel, Al-bronze
Shaft
Zinc plated Steel, Stainless Steel
Seat
NBR, EPDM, PTFE, Viton, Neoprene

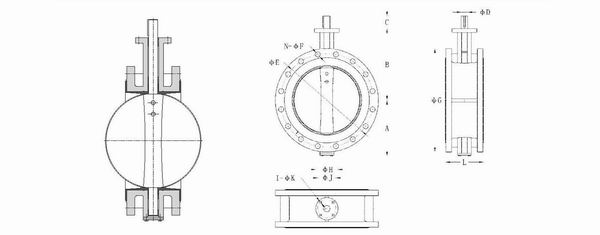

Size
A mm
B mm
C mm
D mm
E mm
PN10
50
70
130
32
12.7
125
65
75
140
32
12.7
145
80
85
150
32
12.7
160
100
104
160
32
15.9
180
125
112
180
32
19.1
210
150
130
200
32
19.1
240
200
160
230
38
22.2
295
250
194
260
38
28.6
350
300
220
300
38
31.8
400
350
270
360
45
31.8
460
400
305
390
51
33.3
515
450
332
420
51
38.1
585
500
362
470
64
41.3
620
600
415
540
70
50.8
725
700
515
565
72
55
840
750
545
612
72
55
900
800
565
640
72
55
950
900
605
680
77
75
1050
1000
685
760
85
85
1160
1100
730
820
85
85
1270
1200
790
880
150
92
1380
