PRODUCT >> Valves >> Butterfly
Product Name: JR-BT-02 Triple Eccentric Flanged Butterfly Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Body
Carbon Steel A216 WCB, A352 LCB, Alloy Steel WC6, WC9, C5, Stainless Steel CF8(M), CF3(M)
Disc
Carbon Steel A216 WCB, A352 LCB, Alloy Steel WC6, WC9, C5, Stainless Steel CF8(M), CF3(M)
Seat ring
PTFE, Stainless Steel, Graphite Spiral Wound
Sealing face overlay
PTFE, 13Cr, 18Cr-8Ni, Co-Cr-a

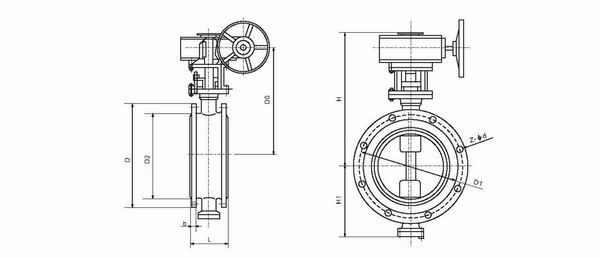

Size
L mm
H mm
Weight kg
150 lbs
1 1/2¡±
106
248
11
2¡±
108
254
12
2 1/2¡±
112
278
16
3¡±
114
312
20
4¡±
127
330
23
5¡±
140
368
29
6¡±
140
404
40.5
8¡±
152
496
81
10¡±
165
558
108
12¡±
178
632
135
14¡±
190
672
188
16¡±
216
714
255
18¡±
222
768
340
20¡±
229
828
445
24¡±
267
952
578


Hits£º2557  Input time£º2012/6/4 ¡¾Print this page¡¿
