PRODUCT >> Valves >> Check

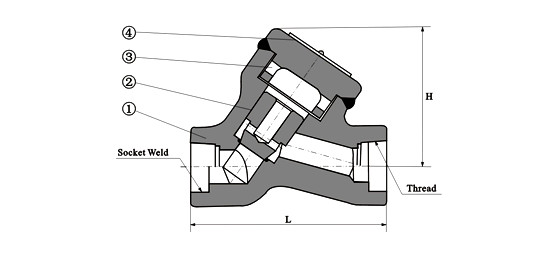

Product Name: JR-CK-22 Y Type Check Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Design & Manufacture: MSS SP-118, BS 5352, ANSI/ASME B16.34
Test & Inspect: API 598
Marking: MSS-SP-25

Body & Bonnet
A105, F22, F304(L), F316(L)
Disc
410, F304, F316

Size
L mm
H mm
Weight kg
Full Bore
3/8¡±
98
85
3.0
1/2¡±
110
95
3.7
3/4¡±
120
105
6.5
1¡±
140
114
8.5
1 1/4¡±
140
114
8.0
1 1/2¡±
170
132
10.9
2¡±
200
145
12.5
