Product Name: JR-CK-18 Integral Flange Forged Steel Check Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The forged steel piston check valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The forged check valves can be piston type, ball type, swing check type. The cover is bolted; Flanged ends. The body of the valve is in A105/F6, other materials are available upon request.

Design & Manufacture: API 602, BS 5352, ANSI/ASME B16.34
Test & Inspect: API 598
Marking: MSS-SP-25
Face to Face: ANSI/ASME B 16.10
Flanges End: ANSI/ASME B16.5
Butt Welded Ends: ANSI/ASME B16.25

Body & Bonnet
A105, F22, F304(L), F316(L)
Disc
410, F304, F316

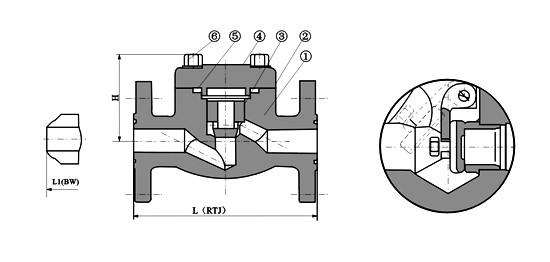

Size
L mm
H mm
Weight kg
150 lbs
1/2¡±
108
61
2.6
3/4¡±
117
61
3.4
1¡±
127
79
4.4
1 1/4¡±
140
95
8.2
1 1/2¡±
165
103
8.9
2¡±
203
118
12.6
