Design & manufacture: BS 5153;
Face to face: DIN 3202 F6, ANSI B016.10
Flanged ends: ISO7005-2 PN10/PN16/PN25
|
Body & Bonnet |
Cast Iron, Ductile Iron |
|
Disc |
Stainless Steel |
|
Sealing face |
Buna-N, EPDM |
|

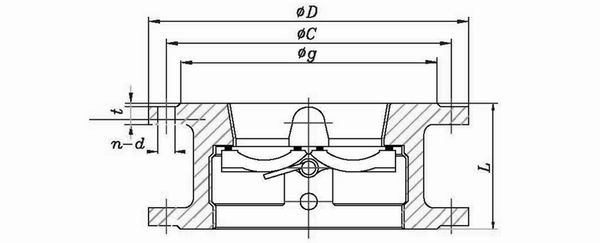

DN |
L mm |
D mm |
Weight kg |
|
40 |
140 |
150 |
|
|
50 |
150 |
165 |
- |
|
65 |
170 |
185 |
- |
|
80 |
180 |
200 |
- |
|
100 |
190 |
220 |
- |
|
125 |
200 |
250 |
- |
|
150 |
210 |
285 |
- |
|
200 |
230 |
340 |
- |
|
250 |
250 |
400 |
- |
|
300 |
270 |
455 |
- |
|
350 |
290 |
520 |
- |
|
400 |
310 |
580 |
- |
|
450 |
330 |
640 |
- |
|
500 |
350 |
715 |
- |
|
600 |
390 |
840 |
- |
